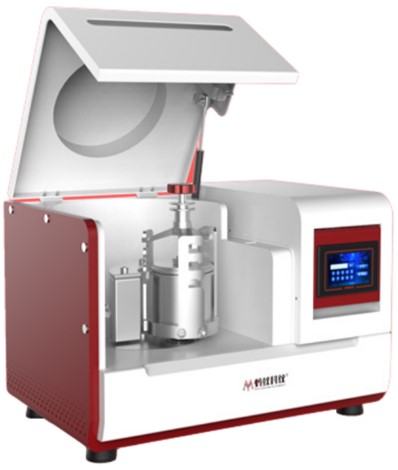

AM410 Planetary Ball Mill



Capability

AM410 Planetary Ball Mill is suitable for soft, medium-hard, hard, brittle and ductile samples. The grinding can be done either dry or wet, wet is suitable for high fineness, even meets the requirements of preparing alloy by mechanical method.

Specifications

  • Sample type : soft, medium-hard, hard, brittle, toughness
  • Feed size : <15mm
  • Sun wheel speed : 100rpm to 650rpm
  • Sun wheel diameter : 305mm
  • Grinding jar volume : 50ml, 80ml, 125ml, 250ml, 500ml
  • Grinding ball diameter : 0.1-1.0mm, 2mm, 3mm. 5mm, 7mm, 10mm, 15mm, 20mm, 25mm, 30mm

Applications

  • Dry or wet grinding sample into sub micron or even nanometer fineness.
  • Fine grinding of various materials, mechanical alloying and activation in materials research
